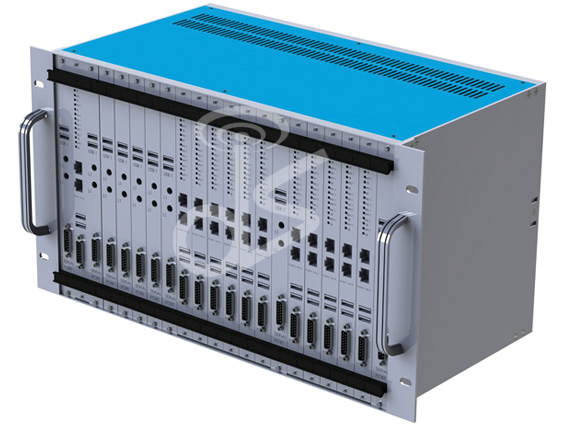

Euro Card Racks
  • Photos
  • Technical Specifications
  • Related Products
  • Seek A Quote
  • Request Detailed Catalogue

DIS - 1301
 Features

19" rack mountable or table top version Provision for rear I/O cards
Dimension as per IEC 297 or DIN 41494 Customised cooling systems
Compatible to euro cards of all sizes Spring loaded GFN guides for good alignment

 Construction

Aluminium special alloy extrusions and sheets
Screw type construction
Glass filled nylon guides - press fit type for 1.6 or 2.4 mm thick PCB
Stainless steel or ms plated hardware

 Compliance

IEC 297 AND DIN41494
IP 40

 Sizes and Part No

DIS Series 1301


Height : 3U to 12U
Width : 19" compatible (21T / 42T / 63T / 84T)
Depth : Can be customised
Facia Plates For PCBS Euro Rail Profile Screen Printing / Engraving Cooling Fans


Guides Plug in Modules Threaded Strips
Mother Board Diamention
PCB
Rack Usable Dimensions
Finish
Threaded Strip
Facia
PCB Holder
Guide
